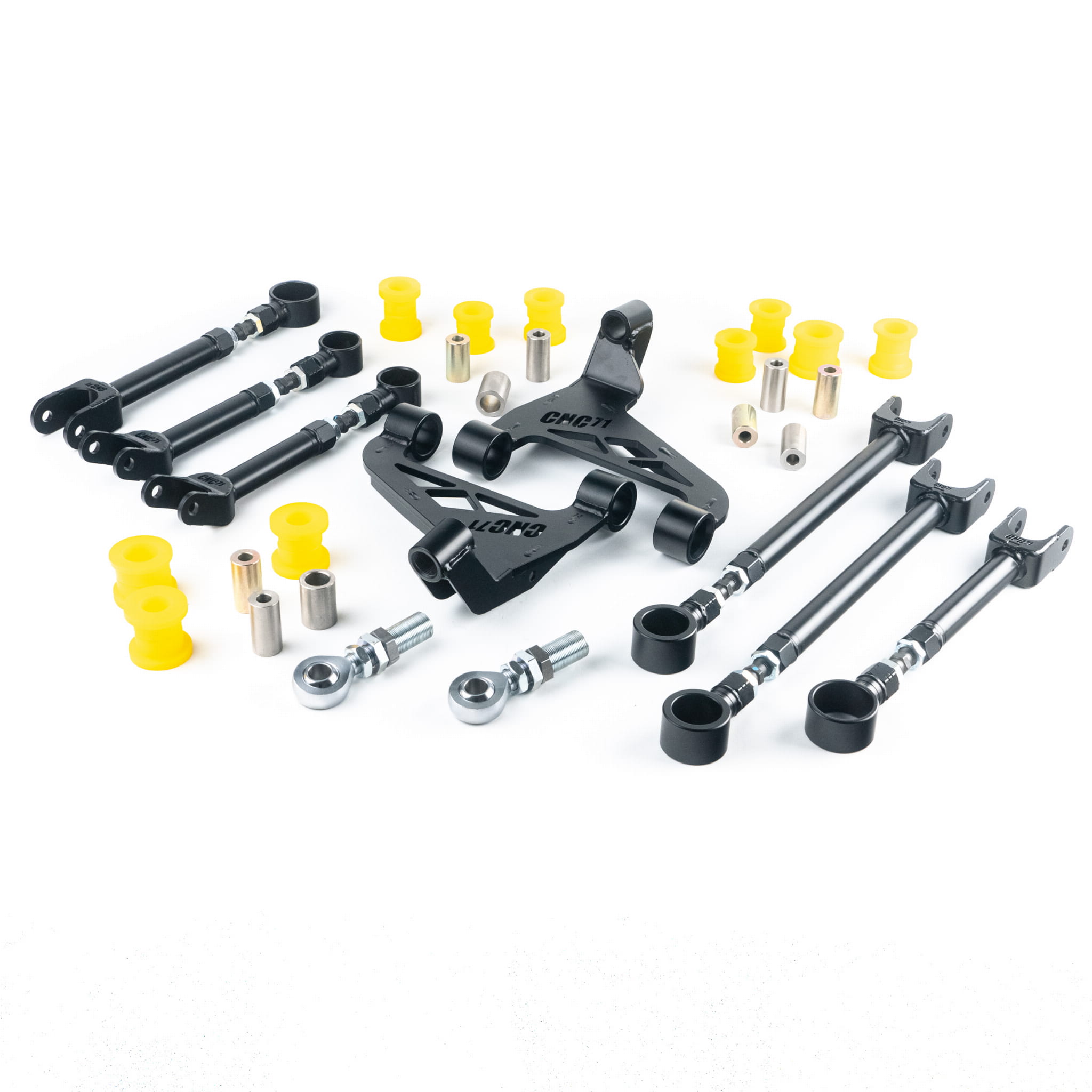

CNC71 adjustable rear suspension set Nissan 350Z / Infiniti G35

Complete set of adjustable rear control arms for the Nissan 350Z from CNC71 Motorsport. Made of S355 steel, produced on CNC machines and welded using MAG and TIG methods. 100% compatible with the serial knuckle, adapted for polyurethane bushings. Adjustment via adjustable turnbuckles. Powder coating in matte black.With the adjustable rear control arms from CNC71 Motorsport for the Nissan 350Z, it is possible to perfectly adjust the rear suspension to the driver's driving style. This is particularly valuable when preparing the car for motorsport applications such as drifting and time attack. A set of adjustable control arms is also the ideal solution for lowering the car and thus achieving the desired wheel-to-fender effect, perfect for lowered suspensions.Nissan 350Z Adjustable Rear Upper Control Arms:

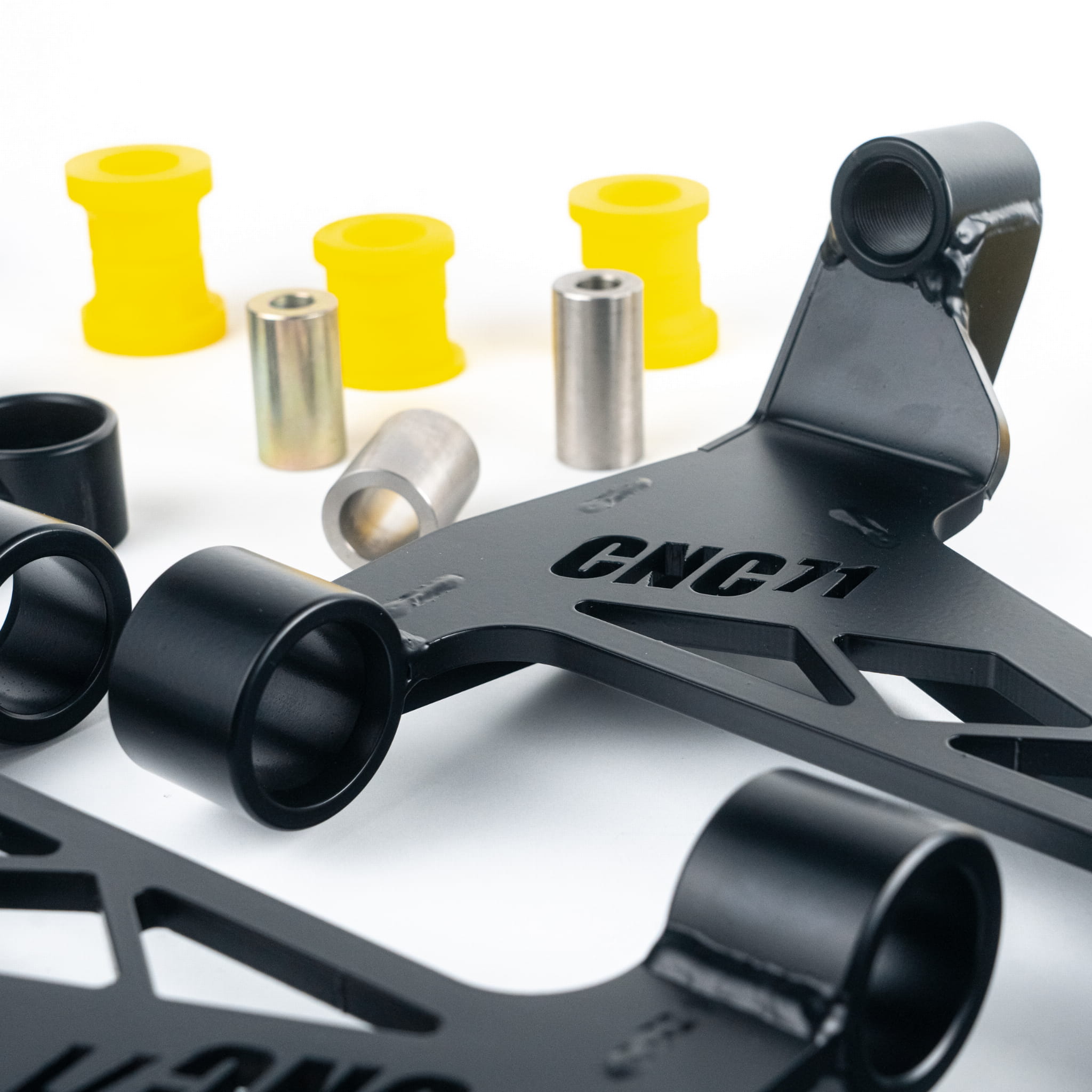

Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha have been used, specially adapted for motorsport use. The control arm is attached via a ball bearing. Thanks to the adjustment range in "+" and "–", the CNC71 Motorsport control arm for the Nissan 350Z offers optimal grip of the vehicle on the driven axle. The total adjustment range is approximately 30 mm (from 280 mm to 310 mm), of which it can be shortened by 20 mm or extended by 10 mm compared to the original control arm (300 mm).

The upper control arm mainly adjusts the camber angle of the wheel. Full adjustment is only possible by using the complete set of rear suspension arms from CNC71 Motorsport for the Nissan 350Z.

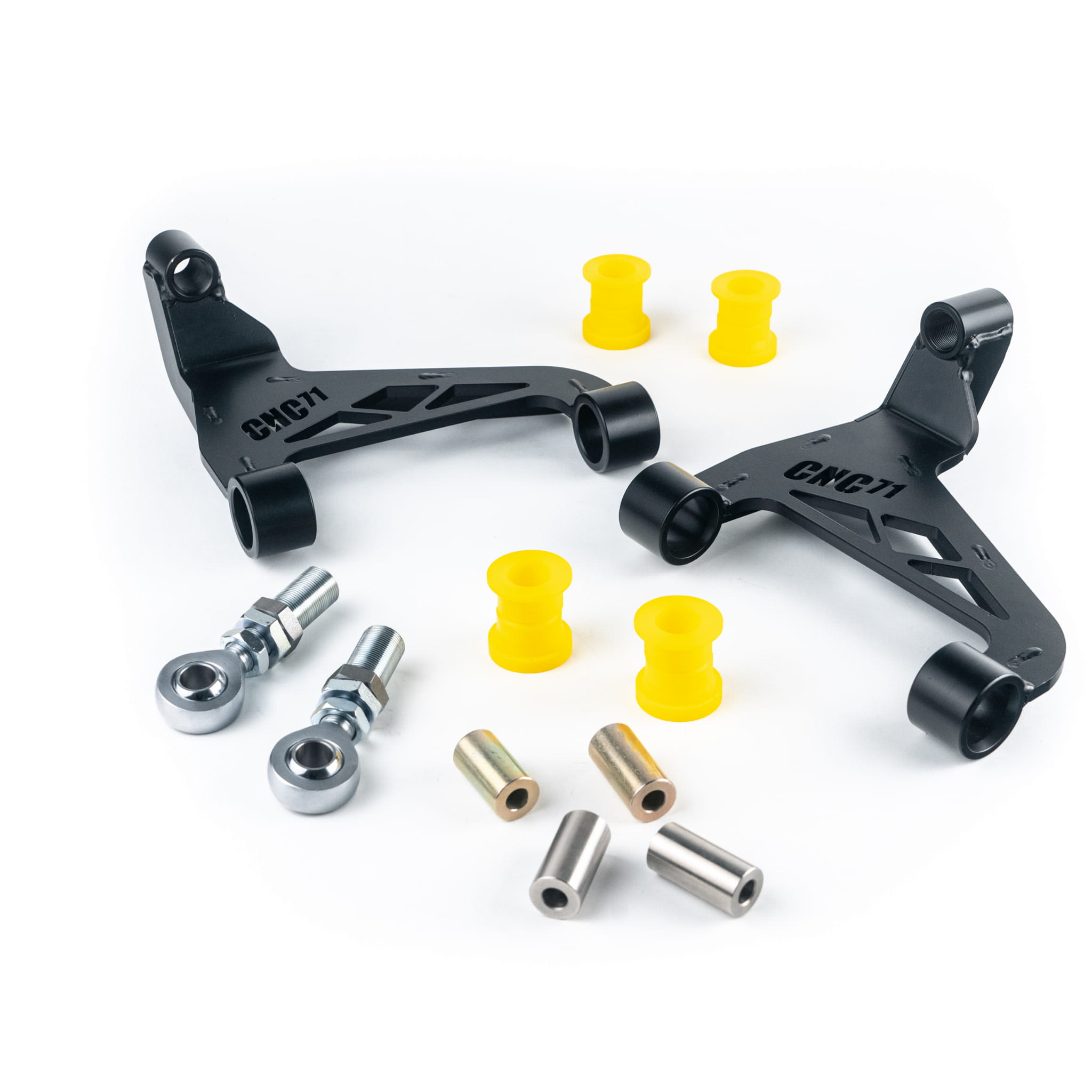

The set of control arms consists of:

• Adjustable rear upper control arm LEFT - 1 piece
• Adjustable rear upper control arm RIGHT - 1 piece
• Uniball M18 - 2 pieces
• Set of uniball inserts (crossover mounting)
• Lock nuts for uniball
• Screw set
• Special insert for adjusting the control arm length

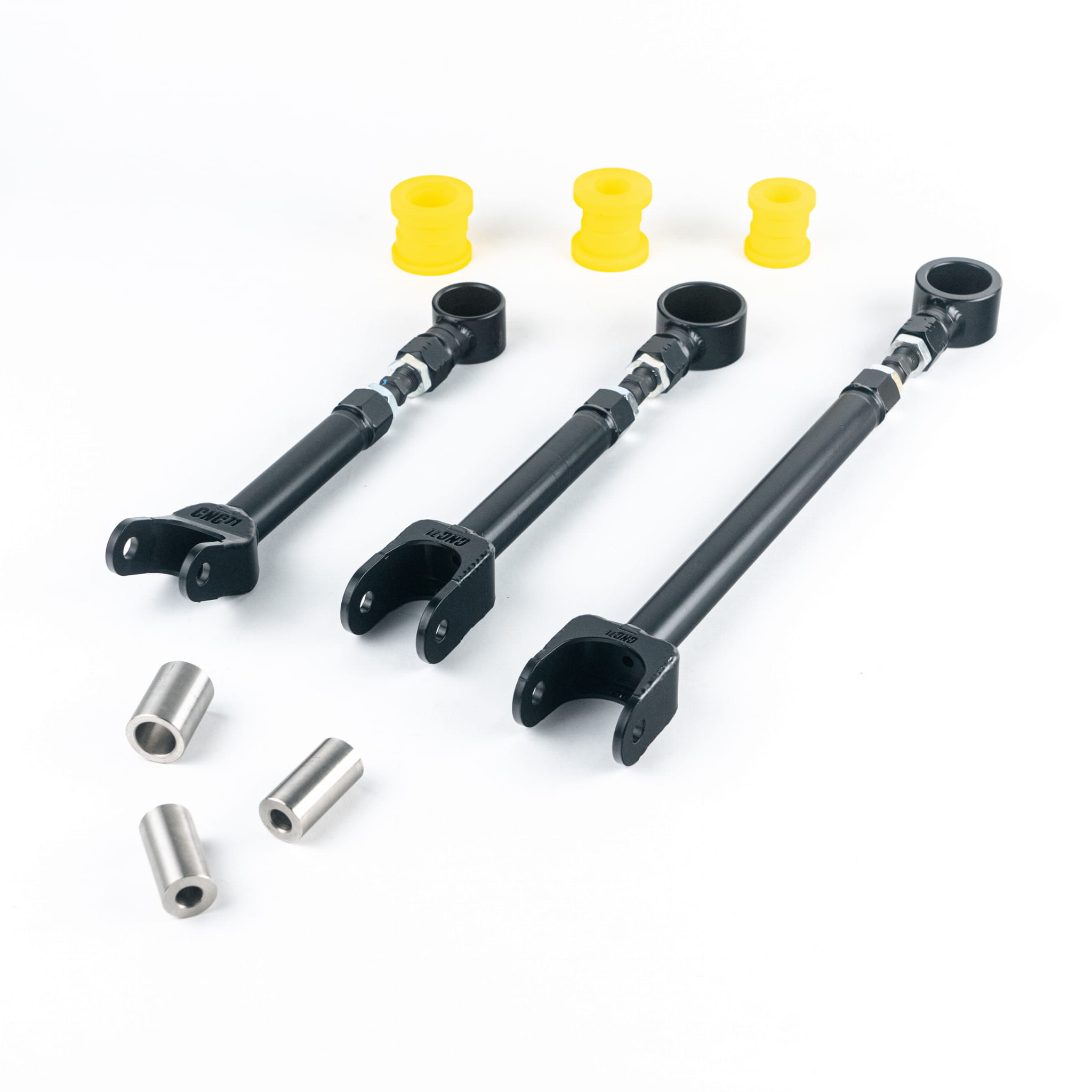

Nissan 350Z Adjustable Rear Traction Rods:
Here too, the polyurethane bushings (90Sha, suitable for motorsport) replace the original rubber bushings. The adjustment range in "+" and "–" makes it possible to achieve maximum traction on the driven axle. The total adjustment range is approximately 30 mm (322 mm to 352 mm), whereby it can be shortened by 10 mm or extended by 20 mm compared to the original control arm (332 mm).

The traction rod mainly influences the toe and camber settings, but full adjustment is only possible with the complete set of rear suspension arms from CNC71 Motorsport for the Nissan 350Z.

The set of traction rods consists of:

• Adjustable rear traction rod - 2 pieces
• Lock nuts - 2 pieces
• Screw set
• Turnbuckle

Nissan 350Z Adjustable Rear Lower Control Arms:
Instead of rubber bushings, polyurethane bushings with a hardness of 90Sha have also been used here, adapted for motorsport use. With the adjustment range in "+" and "–", the CNC71 Motorsport control arm offers optimal grip on the driven axle. The total adjustment range is approximately 30 mm (298 mm - 328 mm), whereby it can be shortened by 10 mm or extended by 20 mm compared to the original control arm (308 mm).

The adjustable lower control arm mainly allows adjustment of toe and camber, but full adjustment is only achieved with the complete set of rear suspension arms from CNC71 Motorsport for the Nissan 350Z.

The set of lower control arms includes:

• Adjustable rear lower control arm - 2 pieces
• Lock nuts - 2 pieces
• Screw set
• Turnbuckle

Nissan 350Z Adjustable Rear Coil Links:
Instead of original rubber bushings, polyurethane bushings with hardness 90Sha have also been used here, suitable for motorsport use. The adjustment range in "+" and "–" ensures maximum traction on the driven axle. The total range is approximately 30 mm (435 mm - 465 mm), within which it can be shortened by 10 mm or extended by 20 mm compared to the original control arm (445 mm).

The coil link mainly influences the toe and camber angle of the wheel, but full adjustment is only possible with the complete set of rear suspension arms from CNC71 Motorsport for the Nissan 350Z.

The set of coil links consists of:

• Adjustable rear coil link - 2 pieces
• Lock nuts - 2 pieces
• Screw set
• Turnbuckle
