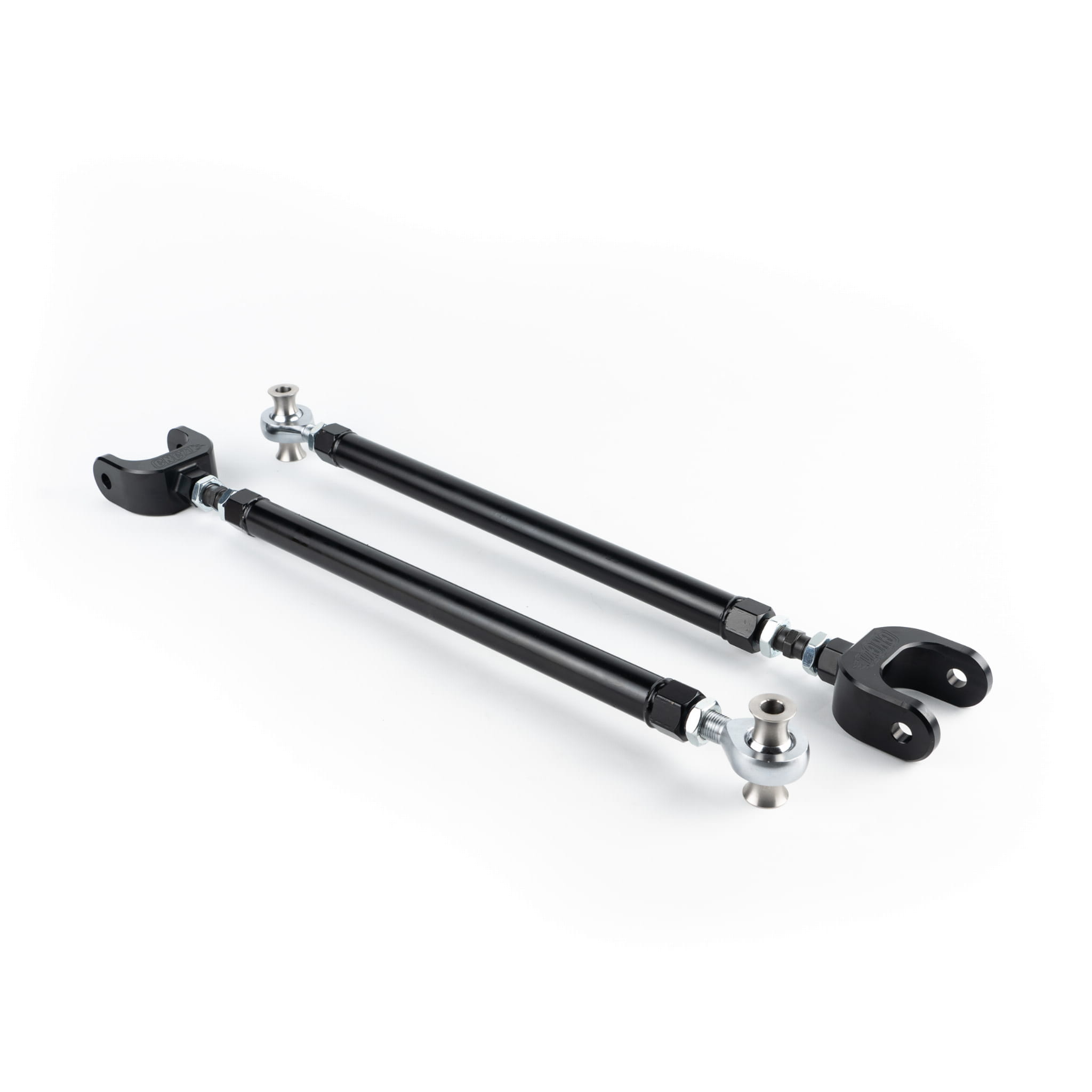

CNC71 adjustable rear lower CONTROL ARMS BMW E36/E46 - Machined

With the adjustable control arms from CNC71 Motorsport for the BMW E36/E46, we can perfectly adjust the rear suspension to the driver's driving style. This is especially useful when preparing the car for motorsport applications, such as drifting and time attack. A set of adjustable lower control arms is also ideal for lowering the car, to ensure a correct fit.The design of the control arms, based on a ball joint, ensures higher rigidity of the rear suspension system, which makes the vehicle more predictable and improves handling. In addition, the uniball is a much more durable solution than the original rubber bush, which is especially important with increased suspension load in sporty use.Due to the adjustment range in both "+" and "-", the CNC71 Motorsport control arms for the BMW E36/E46 offer the possibility to achieve maximum traction on the drive axle. The total adjustment range is approximately 40 mm (544 mm - 585 mm), where we can shorten by 10 mm or extend by 30 mm compared to the original control arm (553 mm - 560 mm).The set of control arms includes:

• Adjustable rear upper control arm LEFT – 1 piece
• Adjustable rear upper control arm RIGHT – 1 piece
• Uniball M16 – 2 pieces
• Uniball spacer set – 4 pieces
• Roman bolt M16x1.5 – 2 pieces
• Locknuts for uniball and turnbuckle – 6 pieces

The control arms are made of thick-walled structural steel tubes and TIG-welded, which ensures very high structural strength. The ears are milled on CNC machines. The individual components are also CNC-milled, which guarantees high quality and repeatability.The control arms are finished with a black powder coat, while the milled ears have an anodized coating.
