CNC71 Toe plate

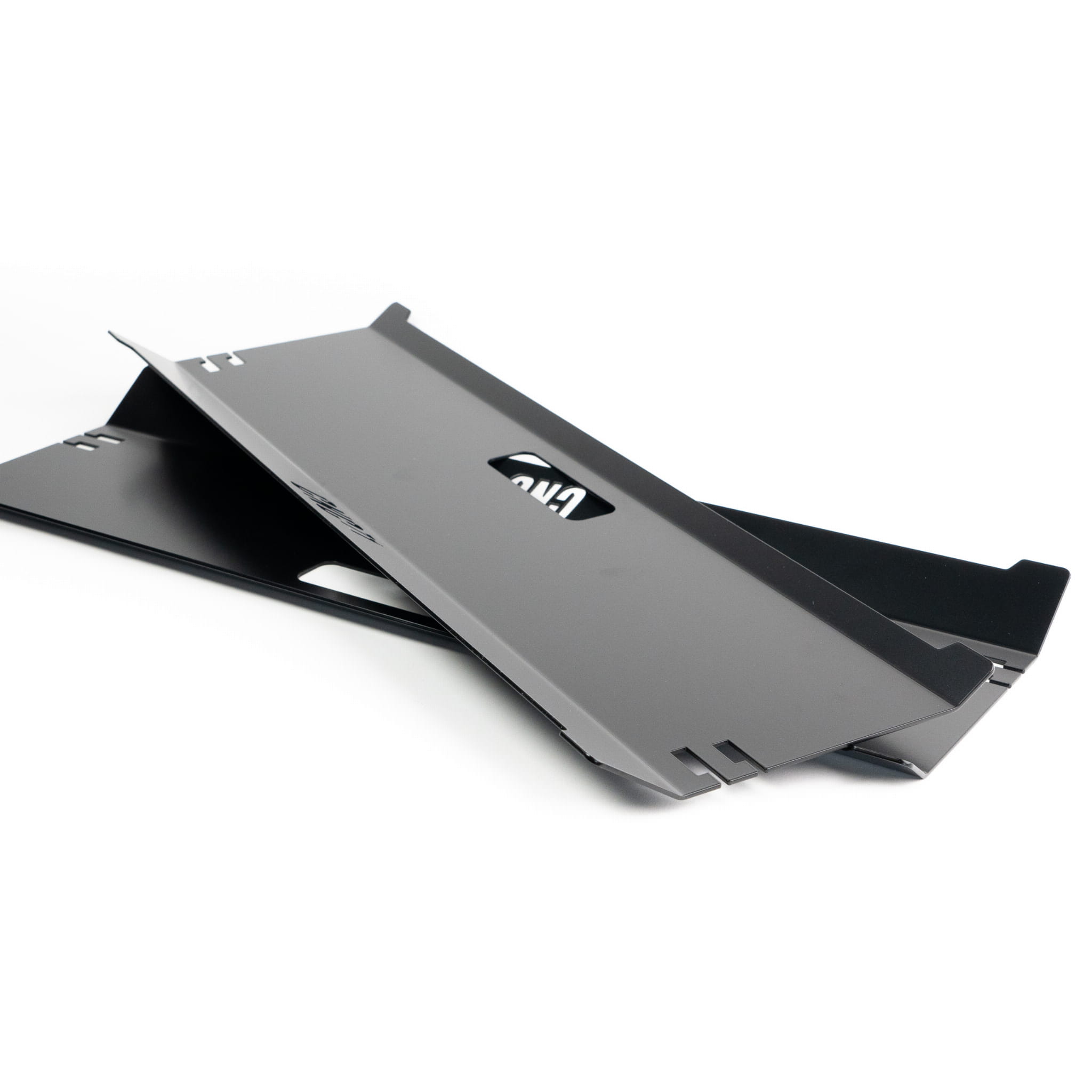

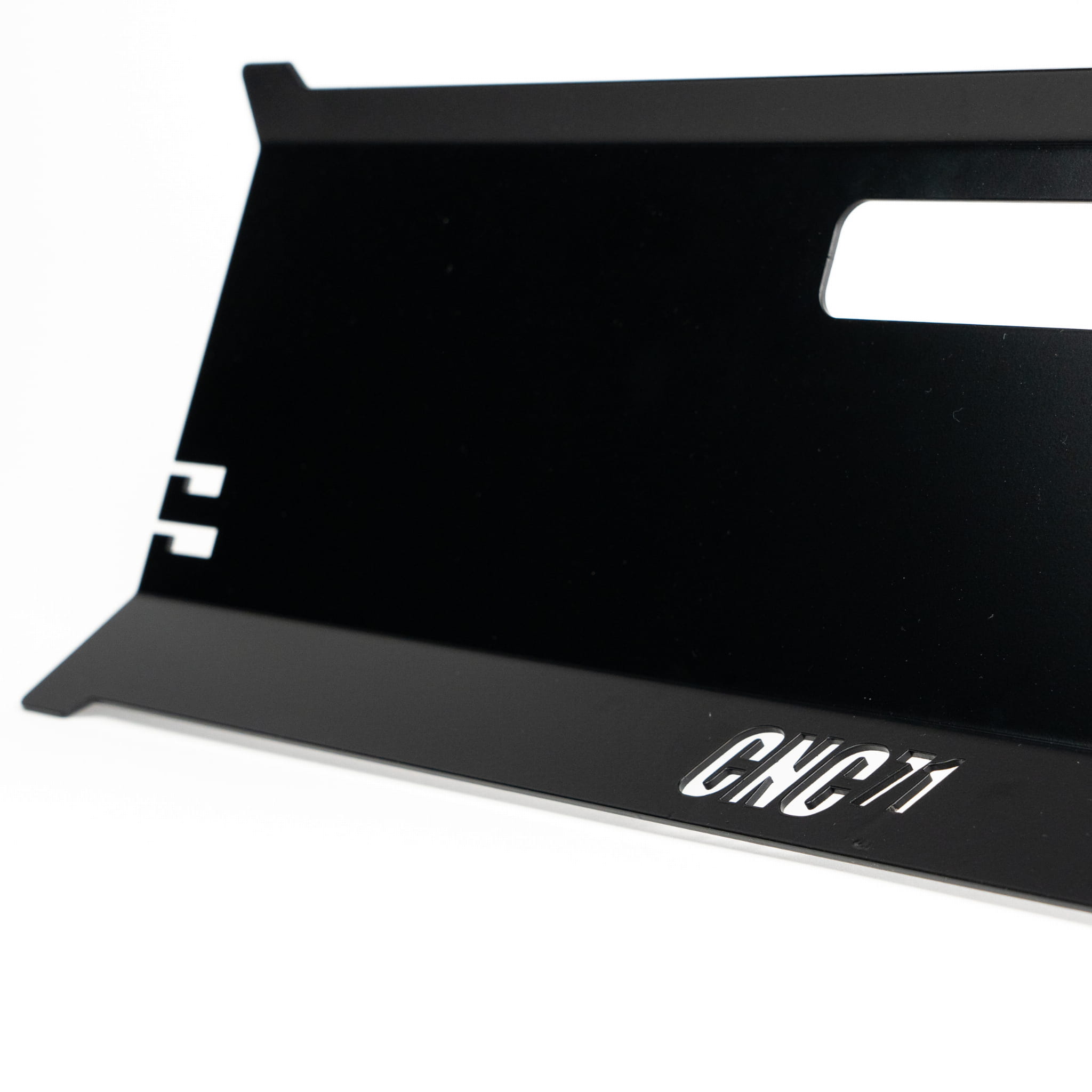

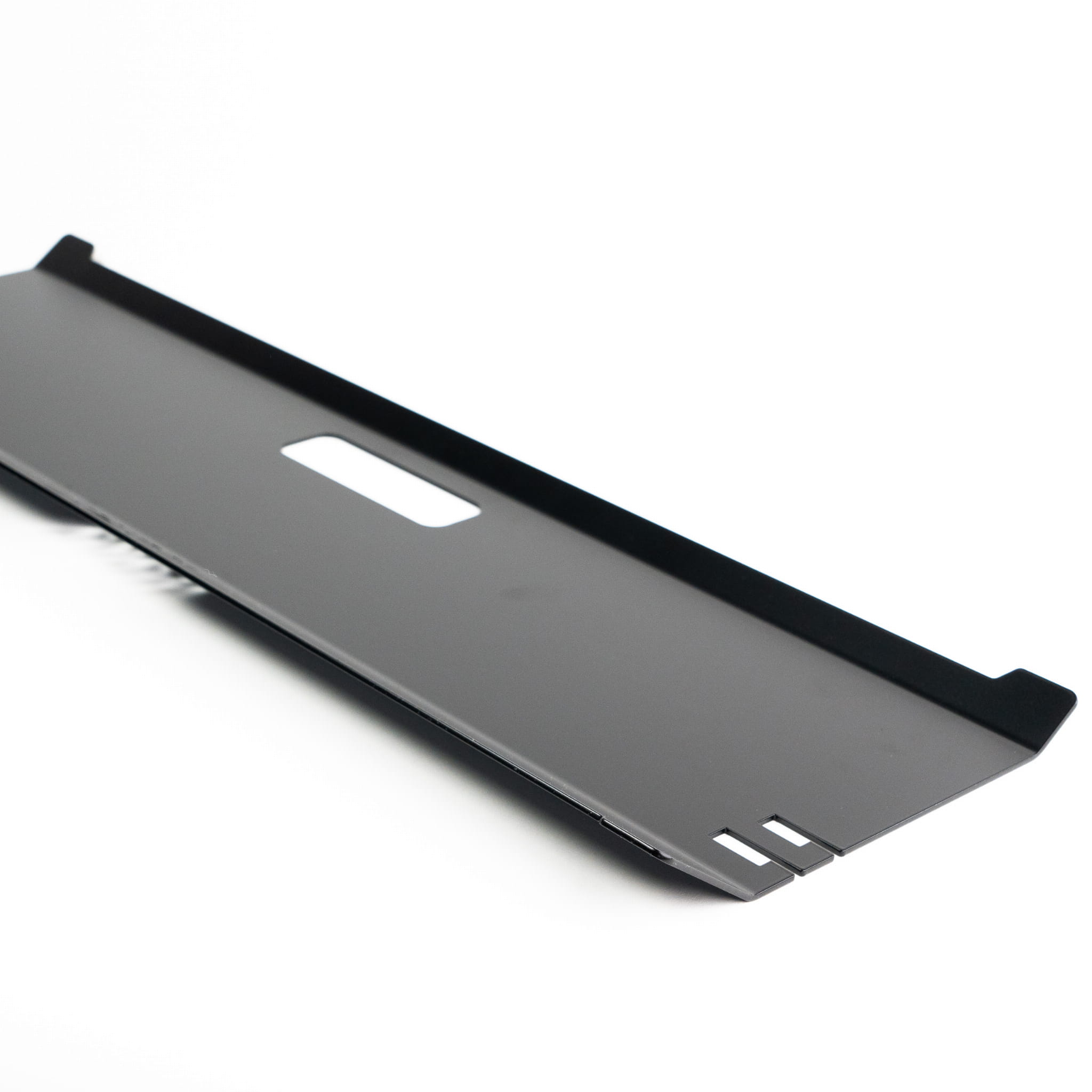

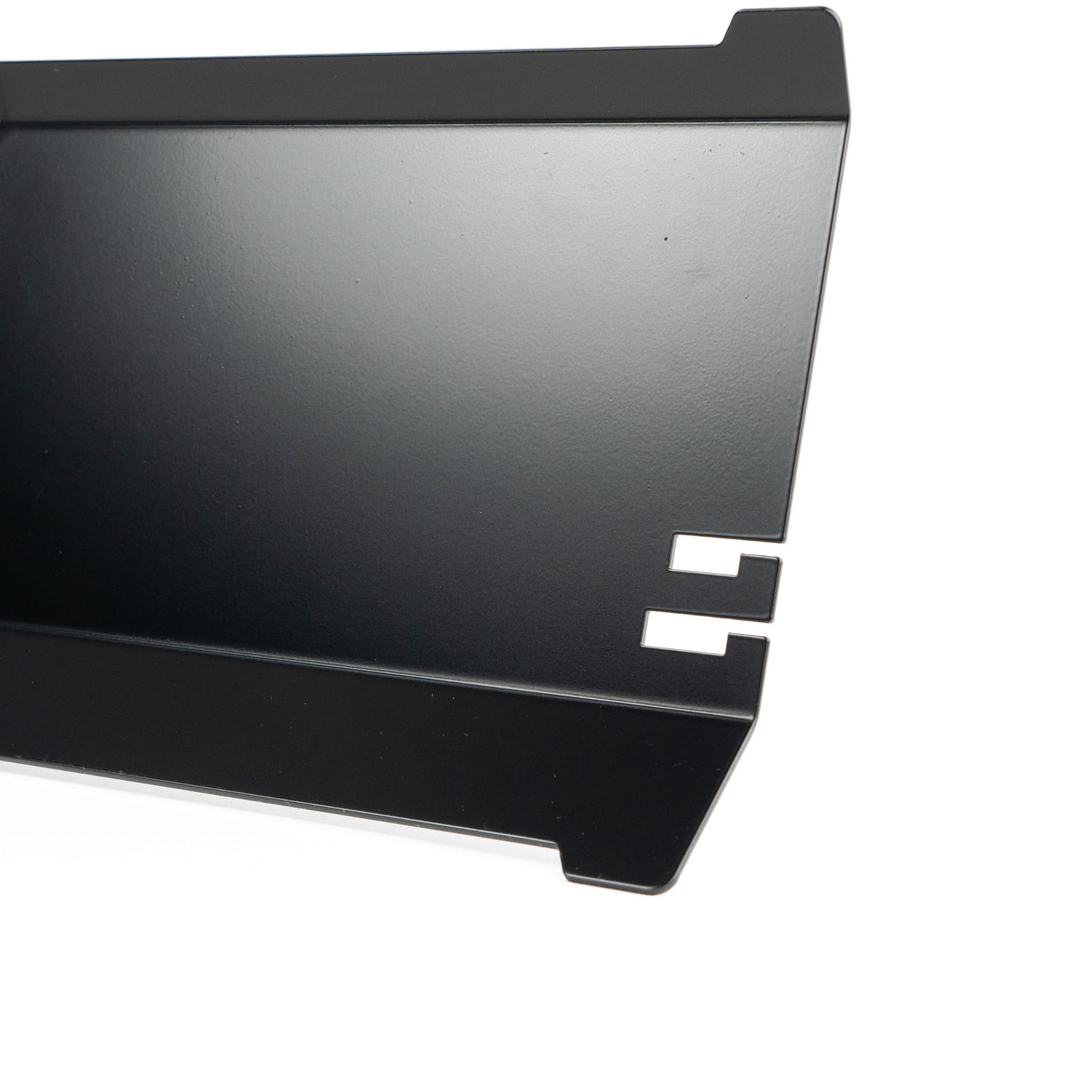

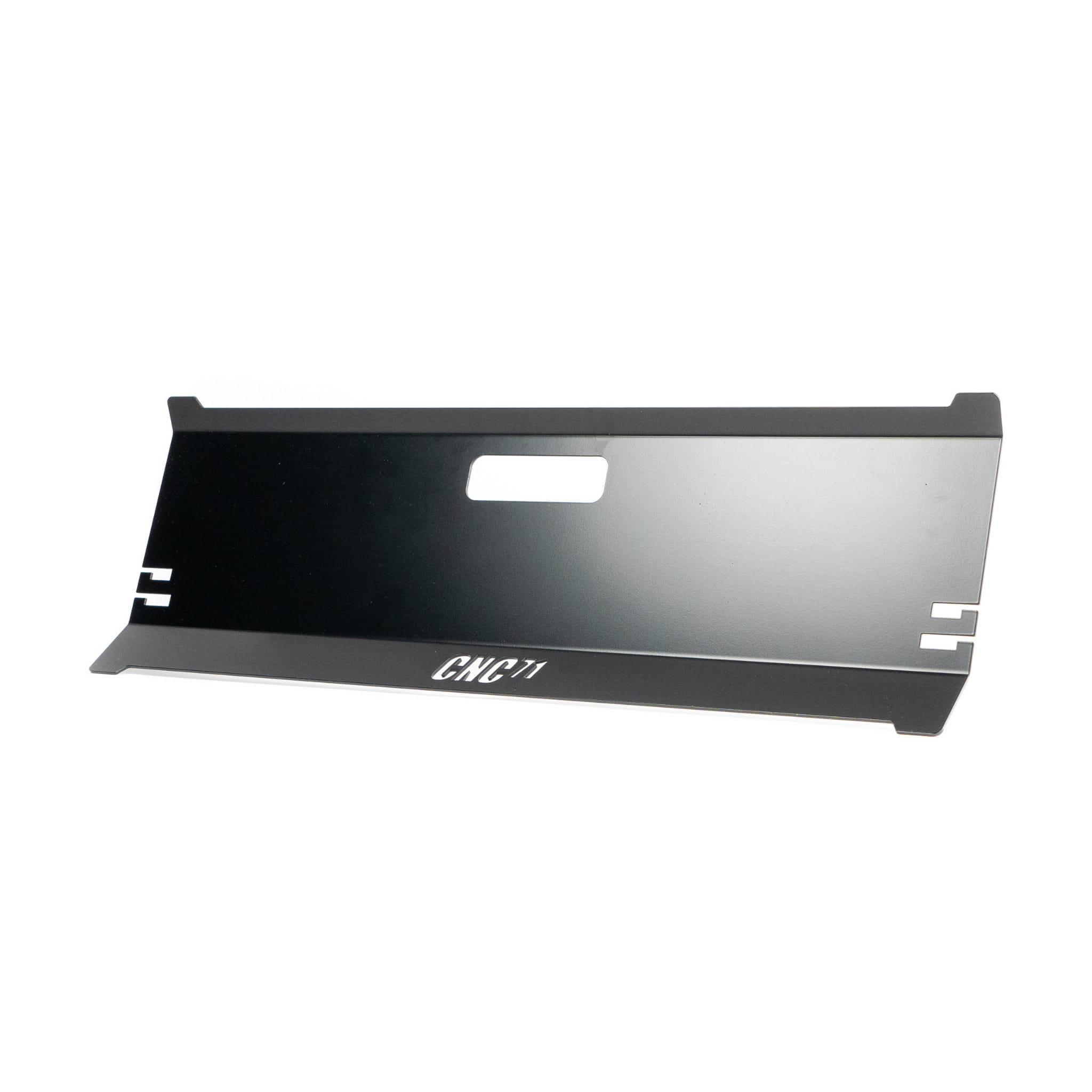

CNC71 Motorsport Toe Plates - a quick and easy way to measure and set wheel alignment under all conditions. Made of steel, black powder coated. Dimensions: 600x180x20 Rigid construction for accurate measurement 3 m long measuring tapes (optionally available for sale - not sold as a set with plates) It is recommended to use our special tool that allows you to quickly calculate the values to be set on the measuring tapes to obtain the desired toe value: https://tools.cnc71.eu/toe-calculator NOTE: CNC71 Motorsport toe plates are used to set this parameter in a simplified way, which is very useful if you are going to the track, possibly replacing suspension components outside the workshop, or need to adjust the car the night before the event ;). However, this only allows for an approximate measurement with limited accuracy. For precise adjustment of the suspension geometry, it is recommended to visit a proper workshop. In addition, the measurement can be distorted in the case of rims whose spokes protrude outside the vehicle beyond the plane defined by the rim edge, and in the case of high-profile tires (and low pressure), which deform significantly at the contact point with the ground, due to the inability to position the plate relative to the wheel. To determine the reference plane, it is necessary to apply the plate at at least 3 points. The price is for a set - 2 pieces of plates
