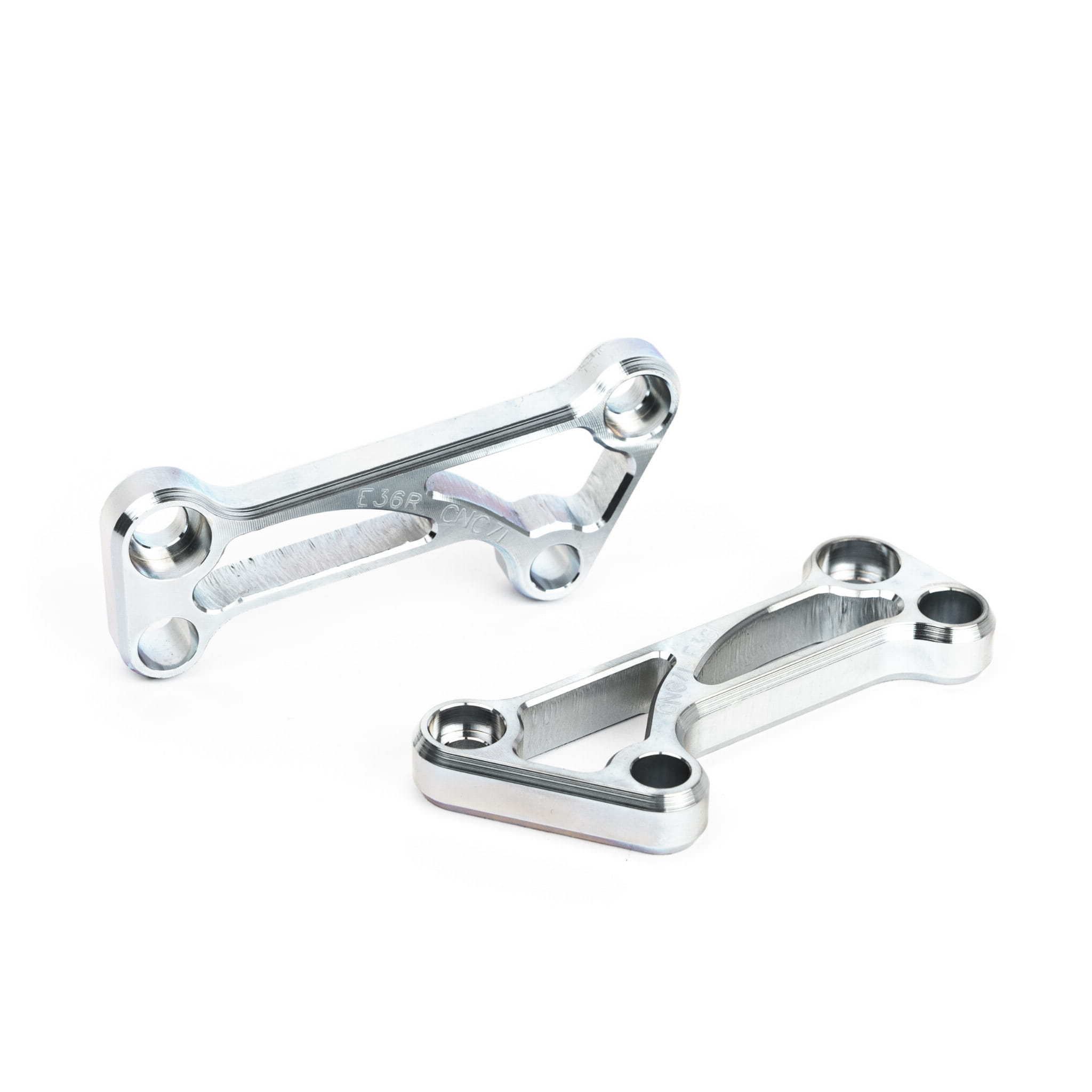

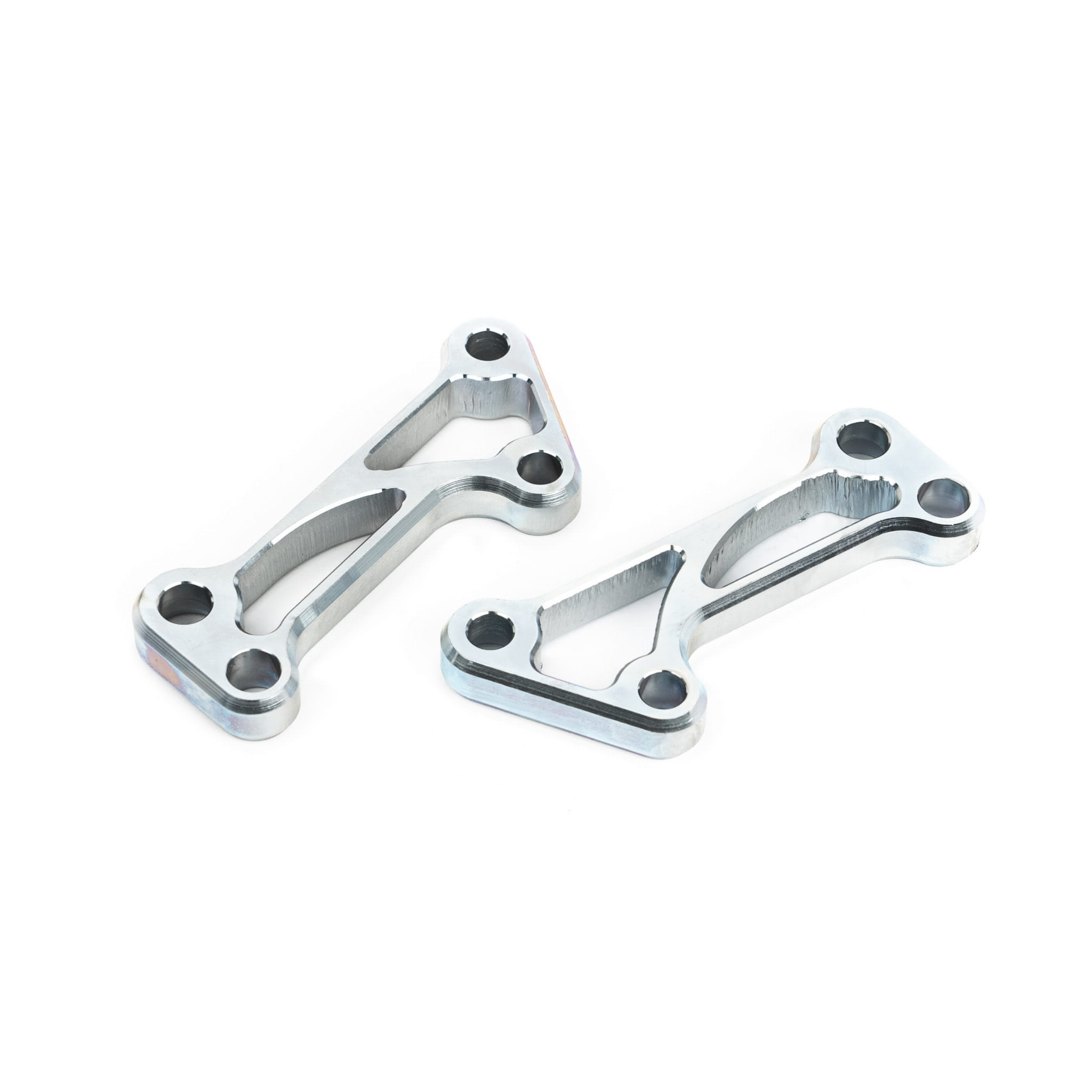

CNC71 Steering Angle Adapters BMW E46 - STANDARD CONTROL ARMS - STEEL

The subject of the sale is a set of steel BMW E46 adapters with a set of mounting bolts for the factory wishbones. The adapters are milled on CNC machines, which guarantees a high-quality finish and a 100% fitting adapter on the knuckle and ball joints. The adapters are protected with a zinc coating. During installation, the tie rod and tie rod end must be shortened by 1 centimeter, the bodywork remains intact. Depending on the wear of the knuckle and differences in castings, it may be necessary to shorten the bolt that attaches the adapter to the knuckle. This is to ensure that it does not come into contact with the shock absorber bracket. We adapt our adapters to the conical specifications of Meyle ball joints. We have noticed that different manufacturers may have different machining tolerances. This may cause the mounting thread of the ball joint to protrude from the adapter, and you may not be able to tighten it securely. If that is the case, use a washer to fill the nut and you can continue. The minimum inner diameter of the rim to mount the adapter is 370 mm. The adapters widen the track by 2 cm per side. To obtain approximately 55 degrees of steering angle. The set includes: LEFT knuckle adapter - 1 piece RIGHT knuckle adapter - 1 piece mounting bolts - 4 pieces We add installation instructions to the set.
